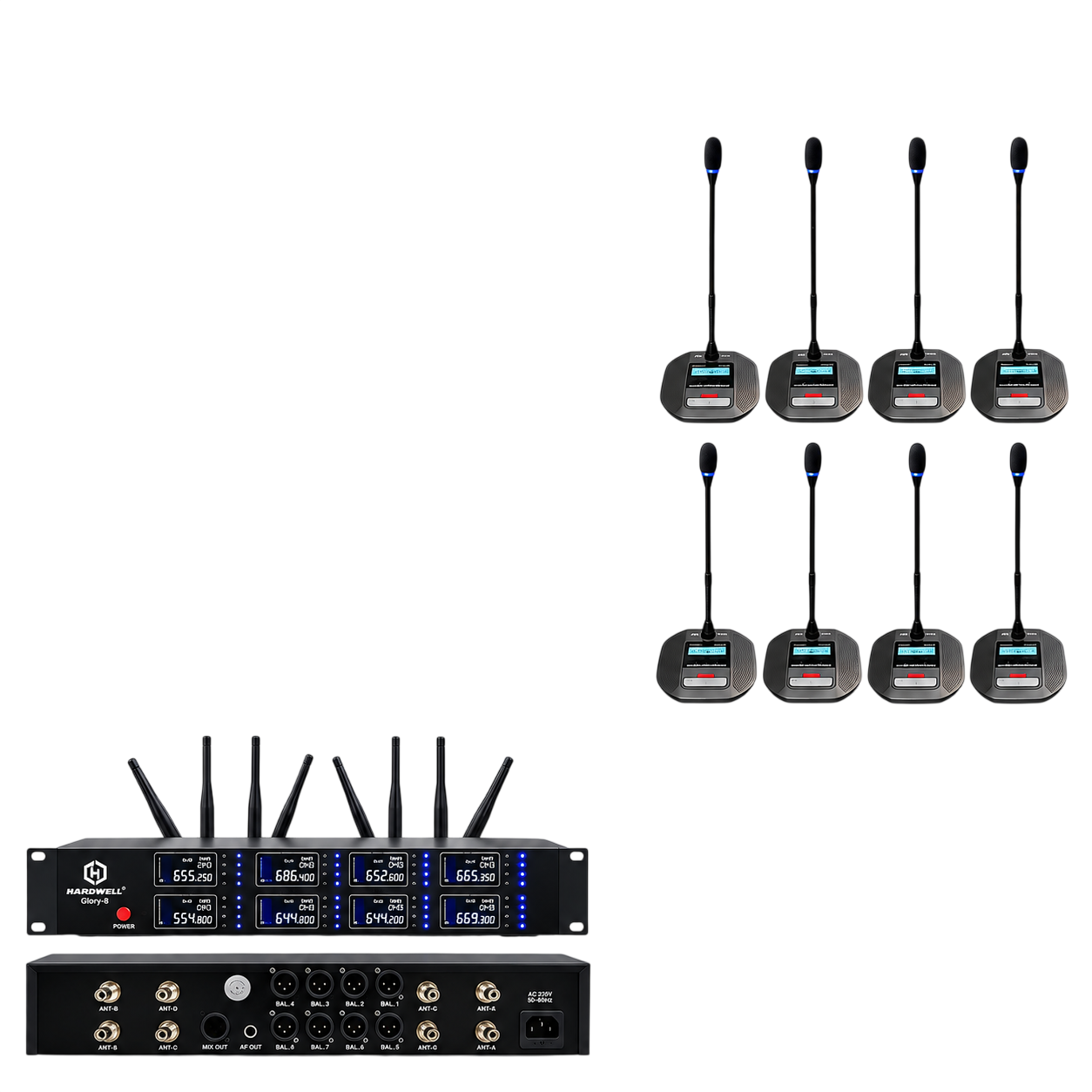

Hardwell Glory-8 Sistem Mikrofon Wireless Conference 8 Handheld

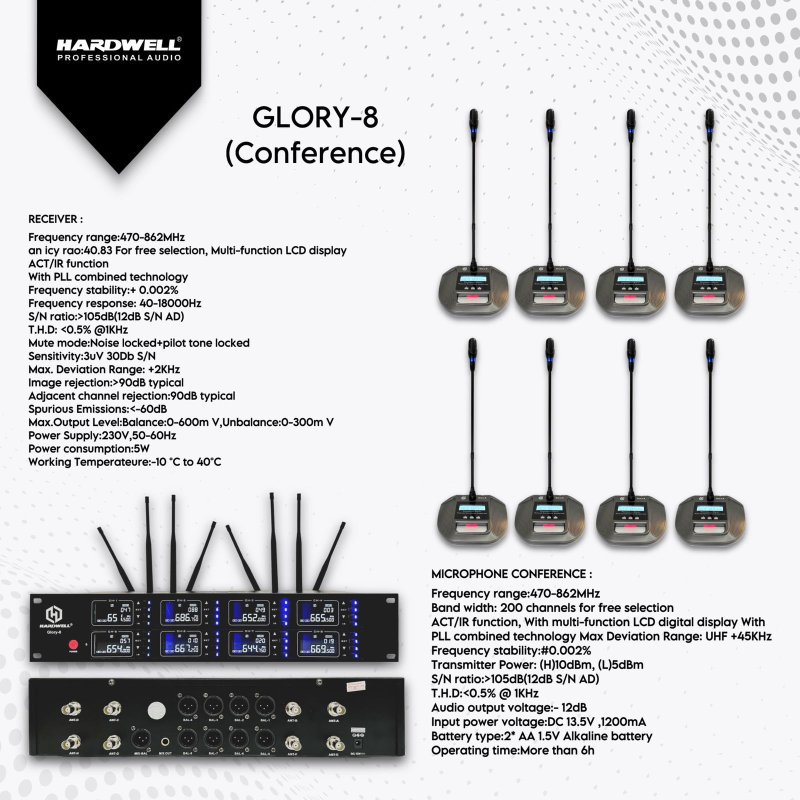

Spesifikasi Glory 8 Conference Microphone

Receiver

• Frequency Range: 470–862 MHz
• Channel: 40 × 83 untuk pemilihan frekuensi
• Display: Multi-function LCD Display
• ACT/IR Function: Ya
• Technology: PLL Combined Technology
• Frequency Stability: ±0,002%
• Frequency Response: 40 Hz – 18 kHz
• Signal-to-Noise Ratio (S/N): 105 dB (12 dB S/N AD)
• Total Harmonic Distortion (THD): <0,5% @ 1 kHz
• Mute Mode: Noise Locked + Pilot Tone Locked
• Sensitivity: 30 dBμV (30 dB S/N)
• Maximum Deviation Range: ±2 kHz
• Image Rejection: >90 dB (typical)
• Adjacent Channel Rejection: 90 dB (typical)
• Spurious Emissions: <−60 dB
• Maximum Output Level: Balanced 0–600 mV; Unbalanced 0–300 mV
• Power Supply: AC 230 V, 50–60 Hz
• Power Consumption: 5 W
• Operating Temperature: −10°C hingga 40°C

Conference Microphone

• Frequency Range: 470–862 MHz
• Channel: 200 Channel, dapat dipilih secara bebas
• ACT/IR Function: Ya
• Display: Multi-function LCD Digital Display
• Technology: PLL Combined Technology
• Maximum Deviation: UHF ±45 kHz
• Frequency Stability: ±0,002%
• Transmitter Power: High 10 dBm / Low 5 dBm
• Signal-to-Noise Ratio (S/N): >105 dB (12 dB S/N AD)
• Total Harmonic Distortion (THD): <0,5% @ 1 kHz
• Audio Output Voltage: −12 dB
• Input Power: DC 13,5 V, 1.200 mA
• Battery: 2 × AA 1,5 V Alkaline
• Operating Time: >6 jam
